Plastic Recycling Machine Agricultural Film PP PE Film Washing Line
This Plastic recycling machine agricultural film is designed and manufactured by huihaocustom, which is widely used for waste plastic PE/LDPE/LLDPE film, PP woven bag, PP Jumbo bag, etc.
The waste dirty material go through crushing, friction washing, washing, dewatering, hot air drying process will turn to be clean flakes for pelletizing.
The line can be displayed "L" or "U" shape according to clients' workshop.
We can also customize the washing line components according to client's material and product requirement.
Specification details of Plastic Recycling Machine Agricultural Film PP PE Film Washing Line
We have 300-1000 kg/h ME Series Efficient plastic recycling machine.and We can design the layout according to your requirements .
| Model | Capacity | Installed Power | Water Supply | Manpower | Area Required |
| ME-300 | 300 kg/hr | 190 KW | 6-8 m3/hr | 2 Person | 40*5*5 M |
| ME-500 | 500 kg/hr | 260 KW | 8-10 m3/hr | 2 Person | 40*5*5 M |
| ME-1000 | 1000 kg/hr | 500 KW | 10-15 m3/hr | 2-3 Person | 50*8*5 M |
equipment list and functions
Conveyor Belt with Metal Detector
Function :Feeding material and detection the metal
Semi-Automatic model For ferrous and non-ferrous Its installed on the sorting conveyor Once there is metal passing it, it will alarm and stop the sorting conveyor, after pick out the metal then start it again Precision for Ferrous >2.5mm
Precision fornon-Ferrous>3.2mm

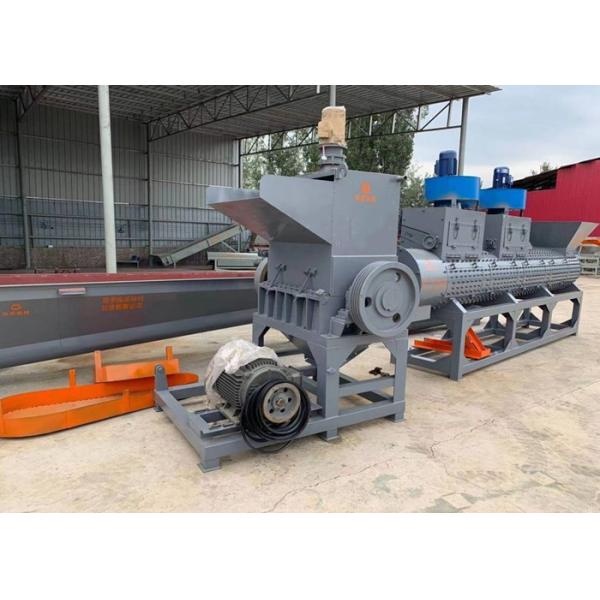

Plastic Crusher Machine
Function :crushing the material into small flakes
With water inlet do wet crushing
This series blades are more wider, it will save the blades cost
Use the big roller bearing ensure its long time
Bearing house is outside of the crusher chamber so no dirty goes inside for longer use
Machine up chamber is higher and covered by belt no flakes pop out
Friction washing loader
Function: Friction washing with water to remove the dirty and loading up it
Up and down both mounted with bearing designWith water injection system to cleaning the screen
Bottom with water drain system
Washing off the dirty and loading the material out to next step processing
Floating washing tank
Function: Floating Washing separate the sand, soil and other dirty The roller is specially made can have more Roller Speed adjust by inverter The roller is specially made can have more washing for lakes but less water take out Bottom with conical design easy and better drain out the dirty and maintenance With platform one set on the side of the tank
High speed dewater machine
Function: take out dirty and remover water
With the roller bearing and fixed outside of rotor for long use life Bearing is “NSK” Brand Japan With water to washing the screen Clean the screen with a rotating brush Bottom with dirty water drain out With water to cooling the bearing house The chamber is easy to opening to maintenance Inside with mesh layer, mesh diameter: 3 mm With water spray system to clean the mesh
Hot air dryer system
Function:drying the material
heating by electricity box Drying pipe: 1 set
Heating power box: 1 set
Heating power: 48KW
Drying pipe diameter: 219mm
Drying pipe length: 15m
Blower power: 7.5KW
